Product Summary

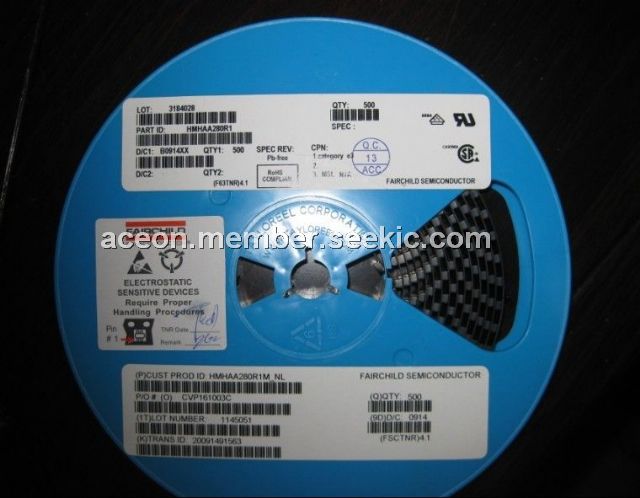

The HMHAA280R1M is a 4-PIN optocoupler. It consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a compact 4-pin mini-flat package.

Parametrics

Absolute maximum ratings: (1)Storage Temperature:-40℃ to +125℃; (2)Operating Temperature:-40℃ to +100℃; (3)Continuous Forward Current:50mA; (4)Peak Forward Current (1 μs pulse, 300 pps.):1A; (5)Reverse Input Voltage:6V; (6)Continuous Collector Current:50mA; (7)Collector-Emitter Voltage:80V; (8)Emitter-Collector Voltage:7V.

Features

Features: (1)Compact 4-pin package(2.4 mm maximum standoff height); (2)Half pitch leads for optimum board space savings; (3)Available in tape and reel quantities of 500 and 2500; (4)Applicable to Infrared Ray reflow (230℃ Max, 30 seconds); (5)BSI (File #8611/8612), CSA (File #1201524), UL (File #E90700) and VDE (File #136480) certified.

Diagrams

HMHA2801
HMHA2801

Fairchild Semiconductor

Transistor Output Optocouplers Optocoupler Phototransistor

Data Sheet

0-1: $0.26
1-25: $0.21
25-100: $0.18
100-250: $0.16
HMHA2801_Q
HMHA2801_Q

Fairchild Semiconductor

Transistor Output Optocouplers Optocoupler Phototransistor

Data Sheet

Negotiable
HMHA2801A
HMHA2801A

Fairchild Semiconductor

Transistor Output Optocouplers 4PN 1/2PTH PhtoXstr Output Optocoupler

Data Sheet

0-1: $0.22
1-25: $0.20
25-100: $0.18
100-250: $0.17
HMHA2801AR1
HMHA2801AR1

Fairchild Semiconductor

Transistor Output Optocouplers Optocoupler Phototransistor

Data Sheet

Negotiable
HMHA2801AR1V
HMHA2801AR1V

Fairchild Semiconductor

Transistor Output Optocouplers Optocoupler Phototransistor

Data Sheet

Negotiable
HMHA2801AR2
HMHA2801AR2

Fairchild Semiconductor

Transistor Output Optocouplers Optocoupler Phototransistor

Data Sheet

0-1: $0.26
1-25: $0.23
25-100: $0.22
100-250: $0.21
