Product Summary

The ITS428L2 is a Smart High-Side Power Switch for Industrial Applications.

Parametrics

Absolute maximum ratings: (1)Supply voltage:43 V; (2)Supply voltage for full short circuit protection:24 V; (3)Load dump protection:60 V; (4)Load current:self-limited; (5)Junction temperature:150℃; (6)Operating temperature range:-30℃ to +85℃; (7)Storage temperature range:-40℃ to +105℃; (8)Power dissipation:75W.

Features

Features: (1)Very low standby current ; (2)CMOS compatible input ; (3)Improved electromagnetic compatibility (EMC) ; (4)Fast demagnetization of inductive loads ; (5)Stable behaviour at undervoltage ; (6)Wide operating voltage range ; (7)Logic ground independent from load ground ; (8)Short circuit protection ; (9)Overload protection ; (10)Current limitation ; (11)Thermal shutdown ; (12)Overvoltage protection (including load dump) with external resistor ; (13)Reverse battery protection with external resistor ; (14)Loss of ground and loss of Vbb protection ; (15)Electrostatic discharge protection (ESD).

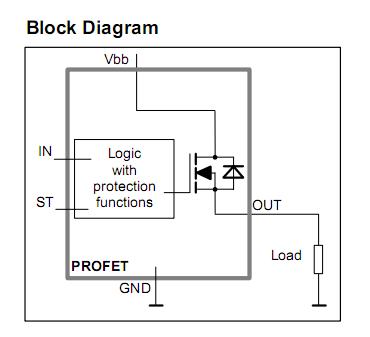

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ITS428L2
ITS428L2
Infineon Technologies
Power Switch ICs - Power Distribution SMART HI SIDE PWR SWITCH 1 CHANNEL
Data Sheet
0-1: $1.83
1-10: $1.57
10-100: $1.28
100-500: $0.99
