Product Summary

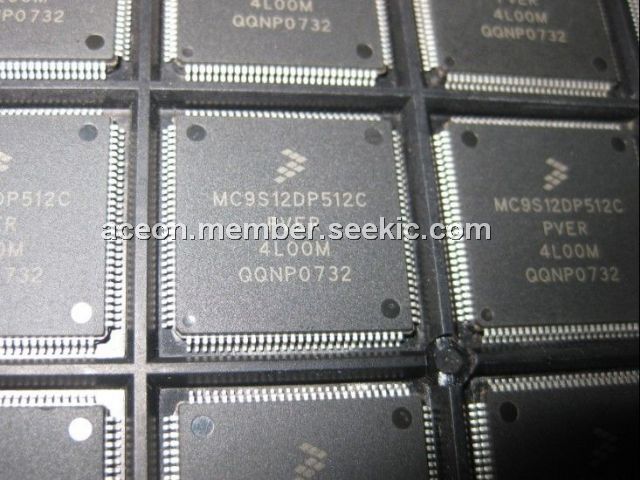

The MC9S12DP512C is a 16-Bit Microcontroller. It is designed for automotive multiplexing applications.
Parametrics
Absolute maximum ratings: (1)I/O, Regulator and Analog Supply Voltage, VDD5: -0.3 to 6.0V; (2)Digital Logic Supply Voltage, VDD: -0.3 to 3.0 V; (3)PLL Supply Voltage, VDDPLL: -0.3 to 3.0 V; (4)Digital I/O Input Voltage, VIN: -0.3 to 6.0 V; (5)Analog Reference, VRH, VRL: -0.3 to 6.0 V; (6)XFC, EXTAL, XTAL inputs, VILV: -0.3 to 3.0 V; (7)TEST input, VTEST: -0.3 to 10.0 V.
Features
Features: (1)Up to five 1M bit per second, CAN 2.0 A, B software compatible modules; (2)Enhanced Capture Timer (ECT); (3)8 PWM channels with programmable period and duty cycle (7 channels on 80 Pin Packages); (4)Serial interfaces; (5)SAE J1850 Compatible Module (BDLC).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC9S12DP512CPV |
|
IC MCU 512K FLASH 25MHZ 112-LQFP |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MC9S12DP512CPVE |
Freescale Semiconductor |
16-bit Microcontrollers (MCU) 16 BIT 25MHz |
Data Sheet |
|
|
||||||||||||
|
MC9S12DP512CPVER |
Freescale Semiconductor |
16-bit Microcontrollers (MCU) 512K FLASH HCS12 MCU |
Data Sheet |
|
|
||||||||||||
