Product Summary

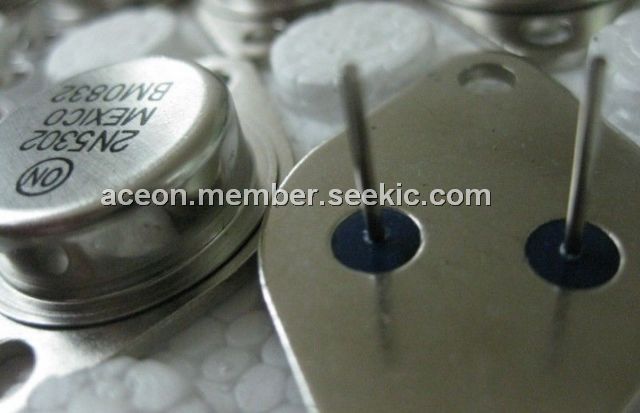

The 2N5302 is a Silicon NPN Power Transistor with TO-3 package.
Parametrics
Absolute maximum ratings: (1)Collector-base voltage:60V; (2)Collector-emitter voltage:60V; (3)Emitter-base voltage:5V ; (4)Collector current:30A; (5)Base current:7.5A; (6)Total power dissipation:200W; (7)Junction temperature:200℃; (8)Storage temperature:-65℃ to 200℃.
Features
Features: (1)With TO-3 package ; (2)Complement to type 2N4398/4399/5745; (3)Low collector/saturation voltage; (4)Excellent safe operating area.
Diagrams
