Product Summary

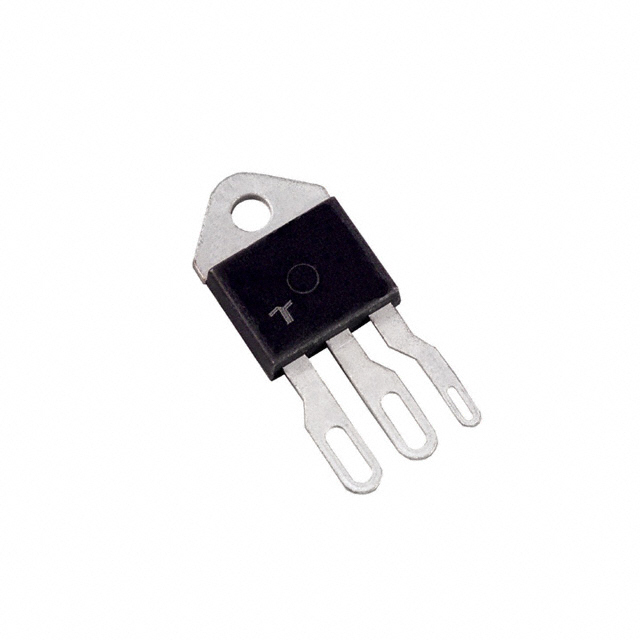

The S2070W is a half-wave, unidirectional, gate-controlled rectifier.

Parametrics

General specifications: (1)Operating temperature range (TJ) is -65℃ to +125℃ for TO-92 devices and -40℃ to +125℃ for all other packages; (2)Storage temperature range (TS) is -65℃ to +150℃ for TO-92 devices, -40℃ to +150℃ for TO-202 and TO-220 devices, and -40℃ to +125℃ for all others; (3)Lead solder temperature is a maximum of 230℃ for 10 seconds maximum; ≥1/16" (1.59 mm) from case.

Features

Features: (1)RoHS Compliant; (2)Electrically-isolated package; (3)High voltage capability:200V to 1000V; (4)High surge capability:up to 950A; (5)Glass-passivated chip.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
S2070W
S2070W
Littelfuse
SCRs 70A 200V
Data Sheet
0-140: $2.60
140-250: $2.43
250-500: $2.20
500-1000: $1.91
S2070W81
S2070W81
Littelfuse
SCRs 70A 200V
Data Sheet
0-140: $2.63
140-250: $2.45
250-500: $2.23
500-1000: $1.93
S2070W81TP
S2070W81TP

SCR NON-SENS 200V 70A TO-218X
Data Sheet
Negotiable
S2070W82
S2070W82
Littelfuse
SCRs 70A 200V
Data Sheet
0-140: $2.65
140-250: $2.47
250-500: $2.24
500-1000: $1.94
S2070W82TP
S2070W82TP

SCR NON-SENS 200V 70A TO-218X
Data Sheet
Negotiable
S2070WTP
S2070WTP
Littelfuse
SCRs SCR 200V 70A
Data Sheet
Negotiable
