Product Summary

The TLE4946-1L is an integrated circuit Hall-effect sensor. The device is designed specifically for highly accurate applications.

Parametrics

TLE4946-1L absolute maximum ratings: (1)Supply voltage:-18V to 18V, for 1 h, Rs ≥ 200Ω:-18V to 24V, for 5 min, Rs ≥ 200Ω:-18V to 26V; (2)Supply current through protection device:-50mA to + 50 mA; (3)Output voltage:-0.7V to 18V, for 5 min @ 1.2 kΩ pull up:-0.7V to 26V; (4)Continuous output current:-50mA to + 50 mA; (5)Junction temperature: for 2000 h (not additive):155℃, for 1000 h (not additive):165℃, for 168 h (not additive):175℃, for 3 x 1 h (additive):195℃; (6)Storage temperature:-40℃ to 150℃; (7)Magnetic flux density:unlimited.

Features

TLE4946-1L features: (1)2.7 V to 24 V supply voltage operation; (2)Operation from unregulated power supply; (3)High sensitivity and high stability of the magnetic switching points; (4)High resistance to mechanical stress by Active Error Compensation; (5)Reverse battery protection (-18 V); (6)Superior temperature stability; (7)Peak temperatures up to 195℃ without damage; (8)Low jitter (typ. 1 μs); (9)High ESD performance (± 6 kV HBM); (10)Digital output signal; (11)Leaded package PG-SSO-3-2.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

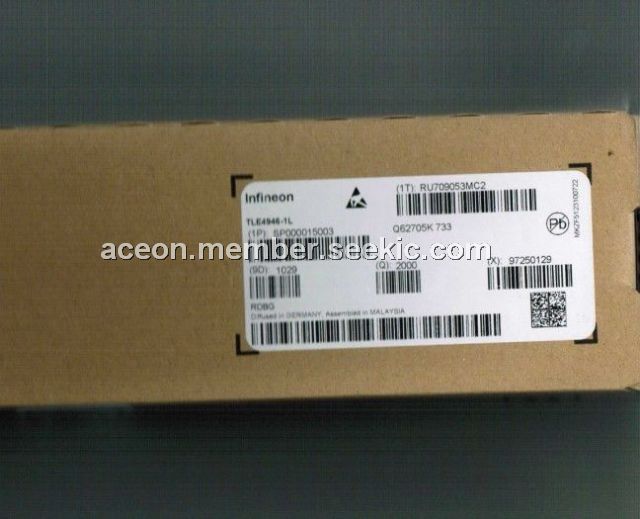

TLE4946-1L
TLE4946-1L

Infineon Technologies

Board Mount Hall Effect / Magnetic Sensors Hi Precision Bipolar Hall-Effect Latch

Data Sheet

0-960: $0.40
960-1000: $0.31
1000-2000: $0.26
2000-8000: $0.25
