Product Summary

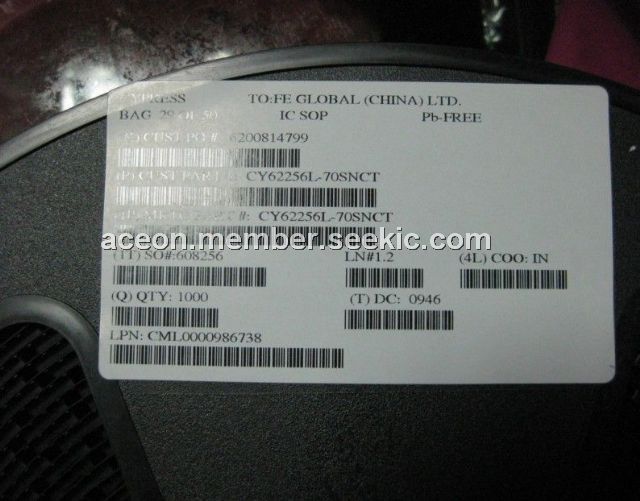

The CY62256L-70SNCT is a high-performance CMOS static RAM organized as 32K words by 8 bits.

Parametrics

Absolute maximum ratings: (1)Storage Temperature:–65℃ to +150℃; (2)Ambient Temperature with Power Applied:–55℃ to +125℃; (3)Supply Voltage to Ground Potential:–0.5V to +7V; (4)DC Voltage Applied to Outputs in High-Z State:–0.5V to VCC+0.5V; (5)DC Input Voltage:–0.5V to VCC + 0.5V; (6)Output Current into Outputs (LOW):20 mA; (7)Static Discharge Voltage:> 2001V(per MIL-STD-883, Method 3015); (8)Latch-up Current:> 200 mA.

Features

Features: (1)High speed:55 ns ; (2)Temperature Ranges:Commercial: 0℃ to 70℃,Industrial: –40℃ to 85℃,Automotive:–40℃ to 125℃; (3)Voltage range:4.5V to 5.5V ; (4)Low active power and standby power ; (5)Easy memory expansion with CE and OE features; (6)TTL-compatible inputs and outputs; (7)Automatic power-down when deselected; (8)CMOS for optimum speed/power; (9)Available in a Pb-free and non Pb-free standard 28-pin narrow SOIC, 28-pin TSOP-1, 28-pin Reverse TSOP-1 and 28-pin DIP packages.
