Product Summary
The NHPXA270C5C520 is a processor. It provides industry-leading multimedia performance, low-power capabilities, rich peripheral integration and second generation memory stacking.
Parametrics
Absolute maximum ratings: (1)Storage temperature:–40℃ to 125℃; (2)Offset voltage between any of the following pins:-0.3V to 0.3V; (3)Offset voltage between any of the following pins:-0.3V to 0.3V; (4)Offset voltage between any of the following pins:-0.3V to 0.3V; (5)Offset voltage between any of the following pins:-0.3V to 0.3V; (6)Offset voltage between VCC_LCD<0> and VCC_LCD<1>:-0.3V to 0.3V.
Features
Features: (1)7 Stage pipeline; (2)32 KB instruction cache; (3)32 KB data cache; (4)2 KB “mini” data cache; (5)Extensive data buffering; (6)AC’97 audio port; (7)I2S audio port; (8)USB Client controller; (9)USB Host controller; (10)USB On-The-Go controller; (11)Three high-speed UARTs (two with hardware flow control); (12)FIR and SIR infrared communications port; (13)Hardware debug features-IEEE JTAG interface with boundary scan; (14)Hardware performance-monitoring features with on-chip trace buffer; (15)Real-time clock; (16)Operating-system timers; (17)LCD Controller; (18)Universal Subscriber Identity Module interface.

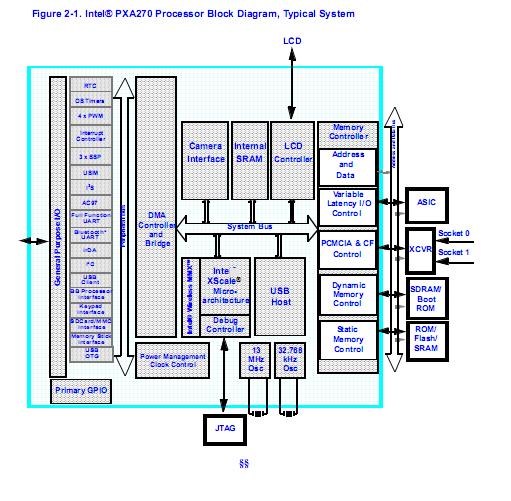

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 NHPXA270C5C520 |
|
IC MPU 32BIT 520MHZ 356-PBGA |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
NHPXA270C5C312 |
|
IC MPU 32BIT 312MHZ 356-PBGA |
Data Sheet |
Negotiable |
|
||||
|
NHPXA270C5C416 |
|
IC MPU 32BIT 416MHZ 356-PBGA |
Data Sheet |
Negotiable |
|
||||
|
NHPXA270C5C520 |
|
IC MPU 32BIT 520MHZ 356-PBGA |
Data Sheet |
Negotiable |
|
||||
